What Is a Thermal Fluid Heater?
A thermal fluid heater, or hot oil heater, transfers heat to a thermal oil or heat-transfer fluid. The heated fluid circulates through a closed-loop system and delivers thermal energy to process equipment, tanks, heat exchangers, and other applications.
Unlike steam systems, thermal fluid systems can often reach high operating temperatures without requiring high pressure.
What Are the Advantages of Thermal Fluid Heaters?
- Common benefits include:
- High thermal efficiency
- Precise temperature control
- Flexible system design
- Consistent heat delivery
- Minimal water-treatment requirements
- Fewer components than many steam systems
- High-temperature operation at relatively low pressure
- Long equipment life with proper operation and maintenance
Because thermal fluid systems operate in a closed loop, they do not require continuous water treatment, condensate return equipment, or many components associated with steam systems.
Actual performance depends on system design, operating temperature, fluid condition, equipment selection, and maintenance.

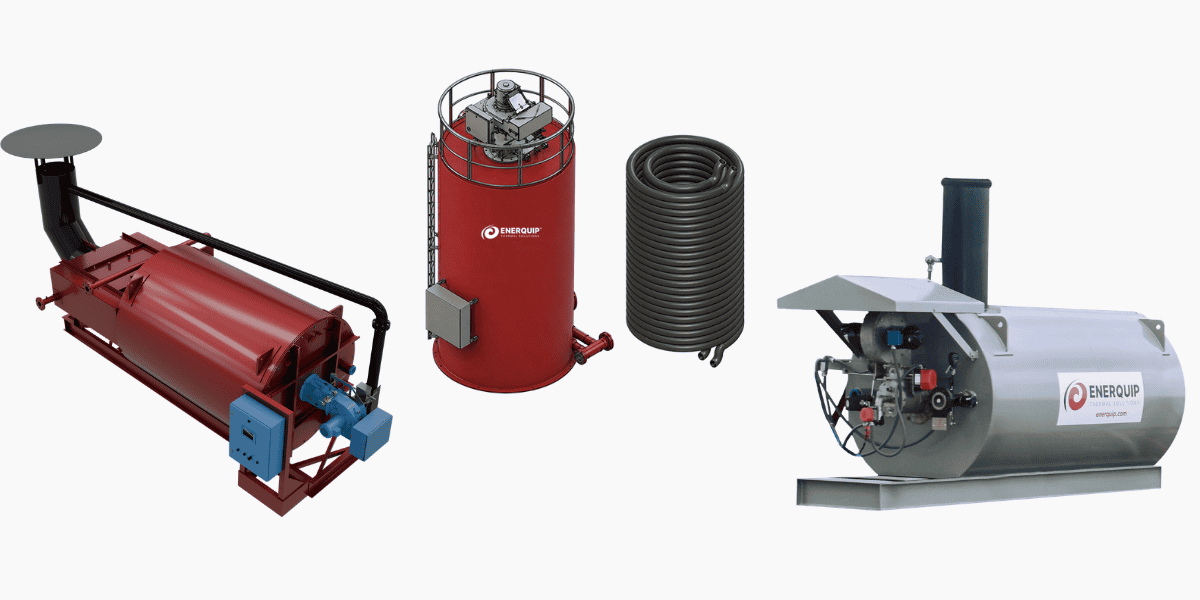

How Are Industrial Hot Oil Heaters Built?
Industrial hot oil heaters are commonly built with one of three coil configurations:
The coil configuration influences heat-transfer performance, operating temperature, efficiency, installation requirements, maintenance, and equipment life.
What Is a Single Helical Coil Heater?
A single helical coil heater uses one continuous tube wound into a compact spiral. Heat transfers directly to the inside surface of the coil, while hot gases pass over the outside before exiting through the stack.
This compact, cost-effective design is a practical choice for lower heat loads and facilities where installation space and upfront investment are important considerations. Enerquip’s Single Helical Coil Series is available in capacities from 1.3 to 13 MM Btu/hr and supports operating temperatures up to 400°F.
What Is a Double Helical Coil Heater?
A double helical coil heater uses two spiral-wound coils layered inside one another. The additional coil increases the available heat transfer surface area and captures heat that would otherwise escape through the stack.
This design provides greater heat recovery and thermal efficiency while maintaining a compact footprint. Enerquip’s Double Helical Coil Series offers thermal efficiencies of 83 to 88 percent, supports operating temperatures above 550°F, and is designed for larger process heating demands.
What Is a Serpentine Coil Heater?
A serpentine coil heater uses tubes arranged in a back-and-forth pattern. This layout exposes the front, sides, and back of the coil to radiant heat, supporting even heat distribution and efficient heat transfer.
Enerquip’s serpentine coil heaters also include an integrated economizer that recovers heat from the exhaust gases. This improves efficiency while supporting longer tube life, higher operating temperatures, and dependable long-term performance.
How Do Serpentine and Helical Coils Differ?
The primary differences are coil arrangement, heating capacity, operating temperature, efficiency, and installation requirements.
Single helical coil heaters offer a compact, economical design for lower heat loads. Double helical coil heaters add heat-transfer surface area to support greater efficiency, higher temperatures, and larger process demands. Serpentine coil heaters provide even heat distribution, high thermal efficiency, and broad capacity options for demanding applications.
The best configuration depends on the required heat load, operating temperature, available space, efficiency goals, fuel source, and budget.
Learn More about choosing the right heat transfer fluid.
Is your heater burning up your heating fluid? Here of common reasons.
How Do I Choose the Right Thermal Fluid?
Choosing the correct heat-transfer fluid is essential for efficiency, equipment protection, and safe operation.
Important factors include:
- Minimum and maximum operating temperatures
- Fluid film temperature limits
- System pressure
- Startup temperature and pumpability
- Flash point and fire point
- Thermal stability
- Oxidation resistance
- Viscosity
- Compatibility with seals and system materials
- Environmental and regulatory requirements
- Expected fluid life and replacement cost
A fluid should not be selected based only on its maximum bulk operating temperature. Heater design, startup conditions, film temperature, and process requirements must also be considered. Learn more about choosing the right heat transfer fluid. Is your heater burning up your heating fluid? Here of common reasons.
Can a Thermal Fluid Heater Replace a Steam Boiler?
In many applications, a thermal fluid heater can replace a steam boiler. The right choice depends on the process, temperature requirements, infrastructure, and regulations.
Potential advantages over steam include:
- High-temperature operation at lower pressure
- No boiler-water treatment
- No condensate return system
- Fewer water-related corrosion concerns
- Lower freezing risk, depending on the selected thermal fluid
- Fewer steam traps and related components
- Potentially lower staffing requirements, depending on local regulations and facility needs
- Precise temperature control
Steam may still be preferred for direct steam injection, humidification, sterilization, or facilities with extensive steam distribution.
How Long Does a Thermal Fluid Heater Last?
A well-designed thermal fluid heater can remain in service for decades.
Equipment life depends on coil design, materials, operating temperature, fluid condition, burner tuning, flow rate, thermal cycling, maintenance, and installation quality.
Regular inspections, burner maintenance, pump monitoring, and fluid analysis can help extend heater life and reduce downtime.
What Maintenance Does a Hot Oil System Require?
Thermal fluid systems usually require less routine treatment than steam systems, but they are not maintenance-free.
A preventive maintenance program should include:
- Regular thermal fluid sampling and analysis
- Checking for leaks
- Inspecting pumps and seals
- Verifying fluid flow
- Maintaining the burner and combustion system
- Testing safety interlocks
- Monitoring pressure and temperature
- Inspecting the expansion tank
- Checking insulation and piping
Changes in pressure, temperature, pump noise, heat-up time, or fluid appearance may indicate a developing problem.
Learn more about maintaining your thermal fluid heater.
Get Expert Help With Your Thermal Fluid Heating System
Selecting a thermal fluid heater involves more than choosing a capacity and operating temperature. Coil configuration, fluid velocity, process load, controls, fuel type, and maintenance requirements should all be considered.
Our team can help you compare single helical, double helical, and serpentine designs. Whether you’re replacing an existing unit or planning for an expansion, we’re ready to help. Contact us to discuss your thermal fluid heating needs.
