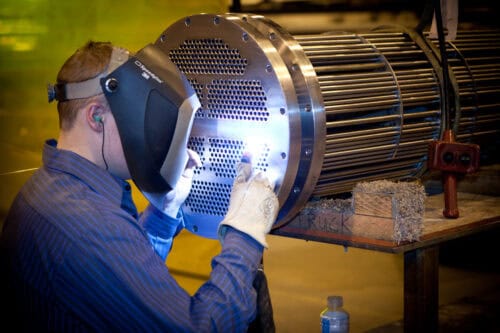

Proper installation is a vital factor affecting shell and tube heat exchanger performance and reliability. Even a properly designed exchanger

 can experience reduced efficiency, vibration problems, leaks, or premature mechanical failure if installation requirements are overlooked.

Careful planning during installation helps improve accessibility, simplify maintenance, and reduce long-term operational issues.

Ensure Adequate Clearance

Heat exchangers require sufficient surrounding space for inspection, maintenance, and cleaning procedures.

Recommended Clearance Guidelines

  • BEU Type Units – Leave adequate clearance at the head of the exchanger to allow tube bundle removal from the shell.
  • BEM and NEN Fixed Tube Sheet Units – Maintain approximately 3 to 4 feet of clearance at the front and rear heads to allow inspection and cleaning access.

Sanitary Heat Exchanger Clearance Requirements

For exchangers designed to meet 3-A Sanitary Standard 12-08:

  • Horizontal exchangers should maintain at least 6 inches of clearance from the floor
  • Vertical exchangers should maintain at least 4 inches of clearance from walls or columns

Proper spacing improves accessibility while supporting sanitary cleaning requirements.

Clearance Requirements Summary

Exchanger Type Recommended Clearance
BEU Type (U-Tube) Units Full tube bundle length plus rigging space at the head end
BEM and NEN Fixed Tube Sheet Units Approximately 3 to 4 feet at front and rear heads
Horizontal sanitary exchangers (3-A) Minimum 6 inches from floor
Vertical sanitary exchangers (3-A) Minimum 4 inches from walls or columns

Install Valves and Bypass Piping

Valves and bypass systems give operators the flexibility to isolate the exchanger without shutting down the entire process. This capability is essential for:

  • Routine inspection and cleaning
  • Preventive maintenance during production
  • Emergency shutdowns without full process interruption

Bypass piping also allows operators to divert flow during startup while the exchanger reaches stable operating conditions. Facilities that install bypass systems during initial construction avoid costly retrofits later.

Add Monitoring Equipment at Installation

Install thermometer wells and pressure gauge connections near all inlet and outlet nozzles during initial installation, not as an afterthought.

Monitoring temperature and pressure conditions at these locations allows operators to:

  • Detect fouling early by tracking pressure drop increases over time
  • Verify thermal performance by comparing actual outlet temperatures to design values
  • Identify operating changes that may indicate flow restrictions, trapped gases, or mechanical issues
  • Maintain safe operating conditions by confirming the system stays within design limits

In our experience, facilities that install monitoring instrumentation from the start catch performance issues significantly earlier than those that rely on periodic manual checks. Continuous or frequent pressure drop monitoring is the single most effective early warning system for fouling.

Provide Venting for Non-Condensable Gases

Air vent cocks should be installed to remove trapped gases from exchanger piping.

Non-condensable gases can:

  • Reduce heat transfer efficiency
  • Cause unstable operation
  • Interfere with proper fluid flow

Venting is especially important during initial startup and after any maintenance procedure that opens the system to atmosphere. Even small amounts of trapped air can measurably reduce thermal performance.

Use Proper Foundations and Supports

The exchanger foundation and support system must be designed to handle:

  • Equipment weight – including the weight of the exchanger when filled with process fluid, which can be significantly more than the dry weight.
  • Thermal expansion loads – the exchanger will grow and shift as it heats up during operation.
  • Piping reaction loads – forces transmitted through connected piping.
  • Vibration control – particularly for exchangers operating at high flow velocities or those connected to reciprocating equipment.

Improper support systems can transmit vibration into the exchanger, create nozzle stress, and cause long-term fatigue damage at pipe connections. The foundation should allow the exchanger to expand freely in the axial direction while remaining constrained against lateral movement.

Account for Thermal Expansion

Heat exchangers expand and contract during operation as temperatures fluctuate. Installation should:

  • Allow room for thermal growth
  • Avoid rigid mounting configurations
  • Minimize stress on piping and nozzles

Thermal expansion management is especially important for fixed tube sheet exchangers.

Allow Proper Drainage

Install the exchanger in a position that allows drainage during shutdown or cleaning. For horizontal exchangers, a slight pitch toward the drain connection ensures no fluid remains trapped in the shell or tubes. Incomplete drainage leads to:

  • Corrosion from stagnant fluid sitting in low points during idle periods
  • Freezing damage in facilities exposed to cold temperatures
  • Contamination risks in sanitary applications where residual fluid can harbor microbial growth

Important: Avoid forcing piping into alignment during installation. If pipe runs do not align naturally with exchanger nozzles, the piping system needs to be adjusted, not forced. Forcing piping into position places excessive bending loads on exchanger nozzles that persist for the life of the equipment and can cause cracking at weld joints.

Clean the System Before Startup

Construction debris, weld slag, pipe scale, and other foreign material left in the piping system can plug tubes, scratch heat transfer surfaces, and damage seals during initial startup.

Before startup:

  1. Flush the entire piping system with clean water or an appropriate cleaning fluid at sufficient velocity to dislodge and carry away debris.
  2. Install temporary strainers upstream of the exchanger if the piping system may contain particulate.
  3. Inspect the exchanger internally to verify cleanliness before closing up.

A clean system protects heat transfer surfaces, prevents premature fouling, and avoids the frustration of troubleshooting performance issues that trace back to installation debris.

Sanitize Product Contact Surfaces

In sanitary applications (food, dairy, beverage, pharmaceutical), all product contact surfaces must be cleaned and sanitized before the exchanger is placed into production service. This step is critical for:

  • Meeting regulatory compliance requirements (FDA, 3-A, USDA)
  • Ensuring product quality and safety from the first production run
  • Removing manufacturing residues, cutting oils, and handling contamination from the fabrication process

Follow your facility’s validated CIP and sanitization procedures before introducing product into a new or reinstalled exchanger.

Install Sight Glasses in Vapor and Steam Systems

Sight glasses installed at condensate outlets help operators visually identify flooding conditions in vapor and steam heating applications.

Flooding, where condensate backs up into the steam space, reduces heat transfer performance and can cause water hammer. Common causes include:

  • Steam trap failure or improper sizing
  • Condensate line restrictions or backpressure
  • Undersized condensate return piping

Early visual detection through sight glasses helps operators identify and correct these conditions before they cause operational disruptions or equipment damage.

Heat Exchanger Installation Checklist

Use this list to verify that installation requirements have been addressed before startup:

  1. Verify proper clearance around the exchanger for maintenance and bundle removal access
  2. Confirm piping is properly supported and aligned without forcing connections
  3. Install vent connections at system high points
  4. Install drain connections at system low points with proper pitch
  5. Verify mounting allows for thermal expansion in the axial direction
  6. Install thermometer wells and pressure gauge connections at all inlet and outlet nozzles
  7. Flush the piping system to remove construction debris
  8. Inspect the exchanger interior for foreign material
  9. Install bypass piping and isolation valves
  10. Install sight glasses at condensate outlets (steam/vapor systems)
  11. Sanitize all product contact surfaces (sanitary applications)
  12. Verify foundation and supports are adequate for operating weight and thermal loads

Proper Installation Supports Long-Term Reliability

Installing a shell and tube heat exchanger correctly from the start can help reduce downtime , improve thermal performance, and extend equipment life. Contact us today to discuss your next heat exchanger project.
