If you need a reliable and efficient way to heat liquids in a tank, bayonet immersion heaters are a widely used solution. Known for their simplicity and effectiveness, these heaters are used across many applications, from small systems to large-scale operations.
This guide explains what bayonet heaters are, how they work, and why they are a practical choice for fluid heating.
What Is a Bayonet Immersion Heater?

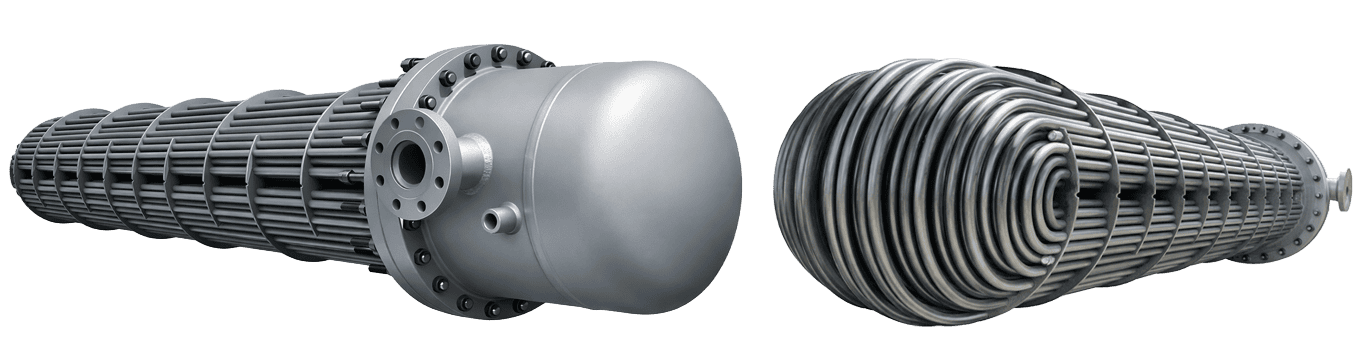

A bayonet immersion heater is a heating unit made up of a removable tube bundle that is inserted directly into a liquid-filled tank or vessel. The design allows the heater to be installed and removed through a manway or access opening without draining the tank.
These heaters are used to warm or maintain the temperature of various fluids, including:
- Water
- Oils and lubricants
- Heat transfer fluids
- Chemicals and solutions
- Food-grade liquids
Because the heater operates inside the fluid, it provides direct and efficient heat transfer.
How Do Bayonet Heaters Work?
Bayonet heaters are built as a tube bundle that is inserted directly into a tank through a manway or tank opening. Once installed, the bundle extends into the stored liquid, allowing heat to transfer from the tubes into the surrounding material.
Here is a simple breakdown of how they function:
- The bayonet heater tube bundle is inserted into the tank through a manway or access opening
- The heating medium or heating elements generate heat inside the tube bundle
- Heat transfers through the tube walls into the liquid in the tank
- Natural convection or tank circulation helps distribute the heat throughout the material
Because the tube bundle is immersed in the tank, bayonet heaters provide direct, efficient heat transfer for maintaining or raising fluid temperature.
Common Applications
Bayonet immersion heaters are used anywhere consistent liquid heating is required. Common applications include:
- Water heating systems
- Oil and lubricant storage tanks
- Chemical processing tanks
- Food and beverage production
- Energy and thermal fluid systems
Their flexibility makes them suitable for both general-purpose and specialized heating needs.
Benefits of Bayonet Immersion Heaters
Energy Efficiency – Direct immersion reduces heat loss and helps lower energy consumption.
Versatility – They can be used with a wide range of fluids and operating conditions.
Reliable Temperature Control – Bayonet heaters provide consistent, even heating, which supports stable processes and product quality.
When Should You Use a Bayonet Heater?
A bayonet immersion heater is a strong choice when you need to:
- Heat or maintain the temperature of liquid stored in a tank
- Achieve efficient, direct heat transfer
- Minimize downtime with accessible maintenance
- Use a flexible solution across multiple applications
If your process requires heating only during fluid transfer, other equipment, like a suction heater, may be more appropriate.
Choosing the Right Tank Heating Solution
Bayonet immersion heaters offer a practical balance of efficiency, simplicity, and serviceability. Their removable tube bundle design and strong heat transfer capabilities make them a dependable solution for a wide range of tank heating applications.
When comparing heating options, it is important to evaluate how bayonet heaters stack up against alternatives like circulation heaters or heat exchangers based on your specific process requirements.
Whether you are upgrading an existing system or designing a new one, selecting the right heating solution plays a key role in long-term performance and reliability.
